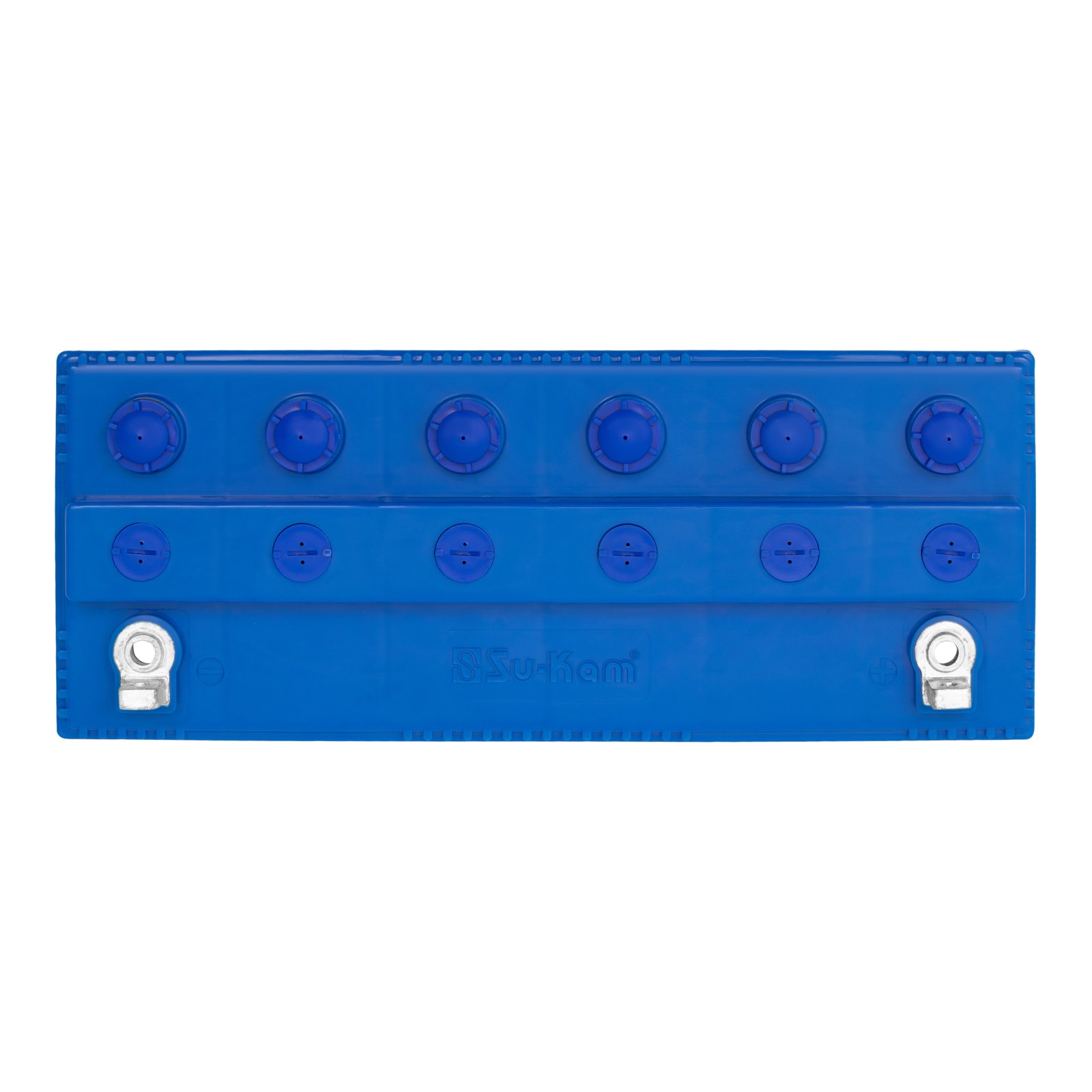

IT 600 Container Laid

Enquiry

S.NO.	DIMENSIONAL DESCRIPTION	UNIT	ACTUAL OBSERVATION
1	TOTAL LENGTH	MM	474.50
2	TOTAL WIDTH	MM	188.50
3	TOTAL HEIGHT	MM	33.50
4	SEALING RIB THICKNESS	MM	4.71
5	SEALING LENGTH OUTER	MM	470.00
6	SEALING LENGTH INNER	MM	455.05
7	SEALING WIDTH OUTER	MM	184.05
8	SEALING WIDTH INNER	MM	168.00
9	TERMINAL OUTER DIA(+VE)	MM	18.00
10	TERMINAL INNER DIA(+VE)	MM	13.00
11	TERMINAL OUTER DIA(-VE)	MM	17.00
12	TERMINAL INNER DIA(-VE)	MM	12.89
13	TERMINAL HEIGHT	MM	10.58
14	WEIGHT	GRAMS	470.00

S.NO.	DIMENSIONAL DESCRIPTION	UNIT	ACTUAL OBSERVATION
1	TOTAL LENGTH	MM	474.50
2	TOTAL WIDTH	MM	181.46
3	TOTAL HEIGHT	MM	33.45
4	SEALING RIB THICKNESS	MM	4.75
5	SEALING LENGTH OUTER	MM	470.10
6	SEALING LENGTH INNER	MM	455.50
7	SEALING WIDTH OUTER	MM	185.50
8	SEALING WIDTH INNER	MM	168.50
9	TERMINAL OUTER DIA(+VE)	MM	18.05
10	TERMINAL INNER DIA(+VE)	MM	13.04
11	TERMINAL OUTER DIA(-VE)	MM	17.10
12	TERMINAL INNER DIA(-VE)	MM	12.85
13	TERMINAL HEIGHT	MM	10.42
14	WEIGHT	GRAMS	485.00

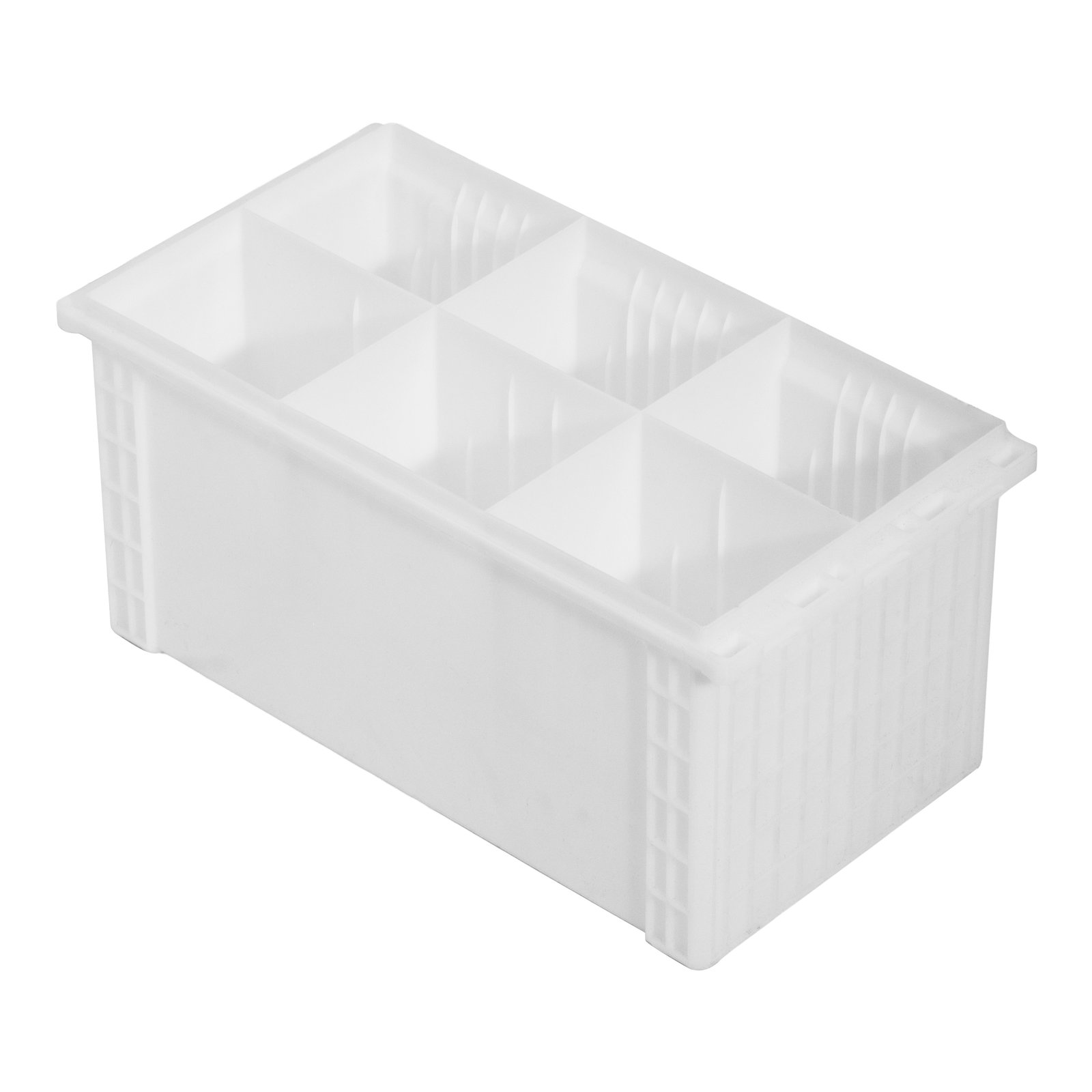

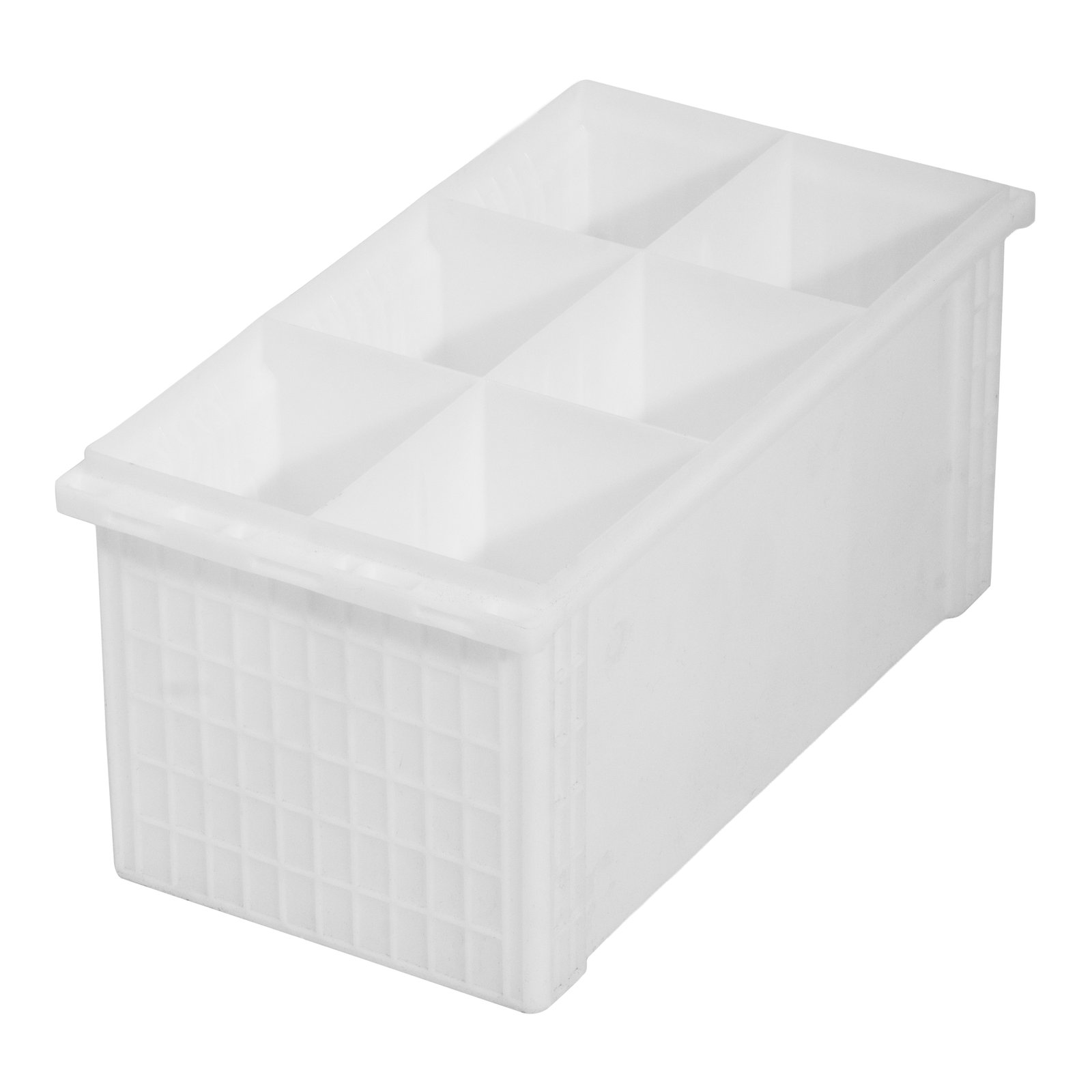

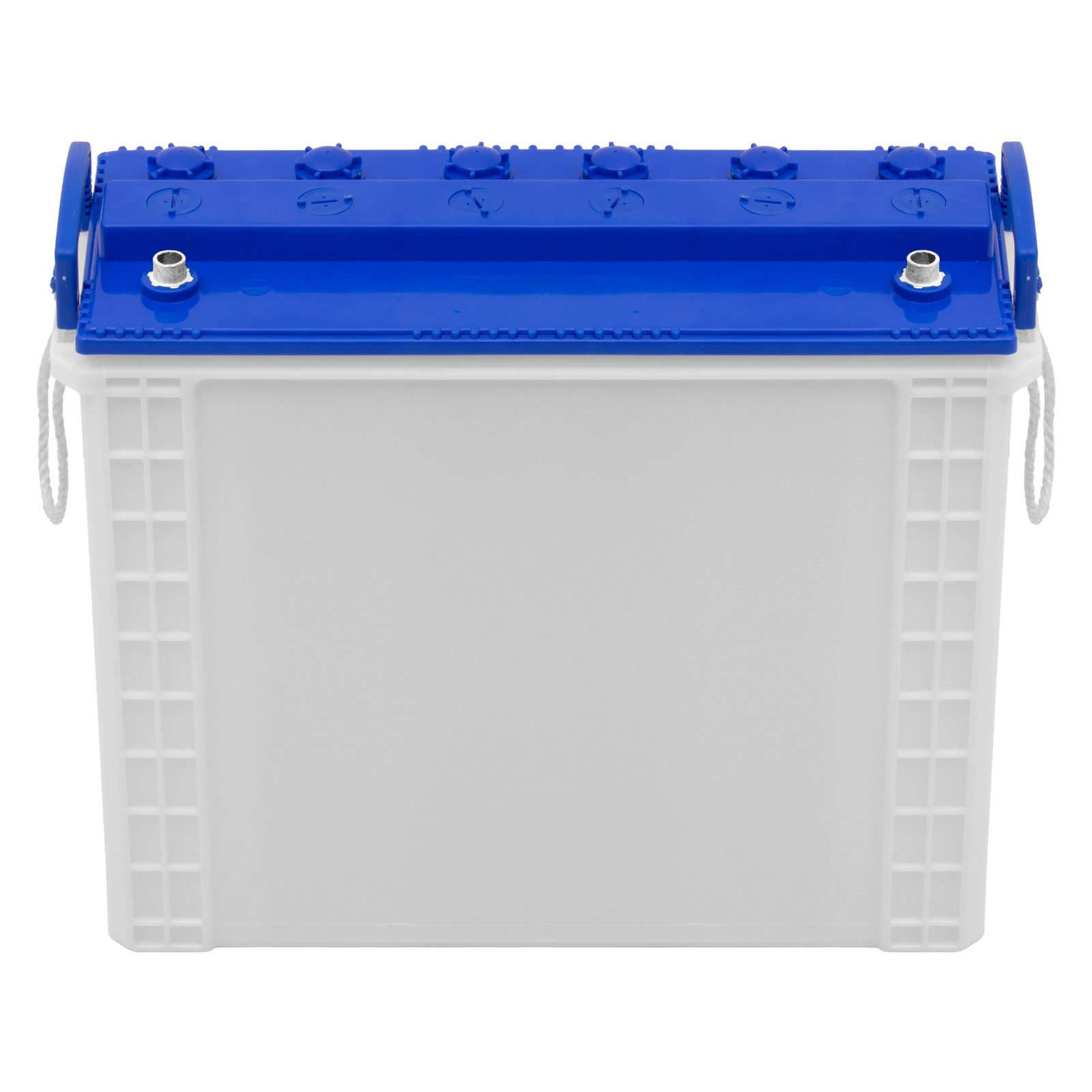

Lead Acid Battery Container
