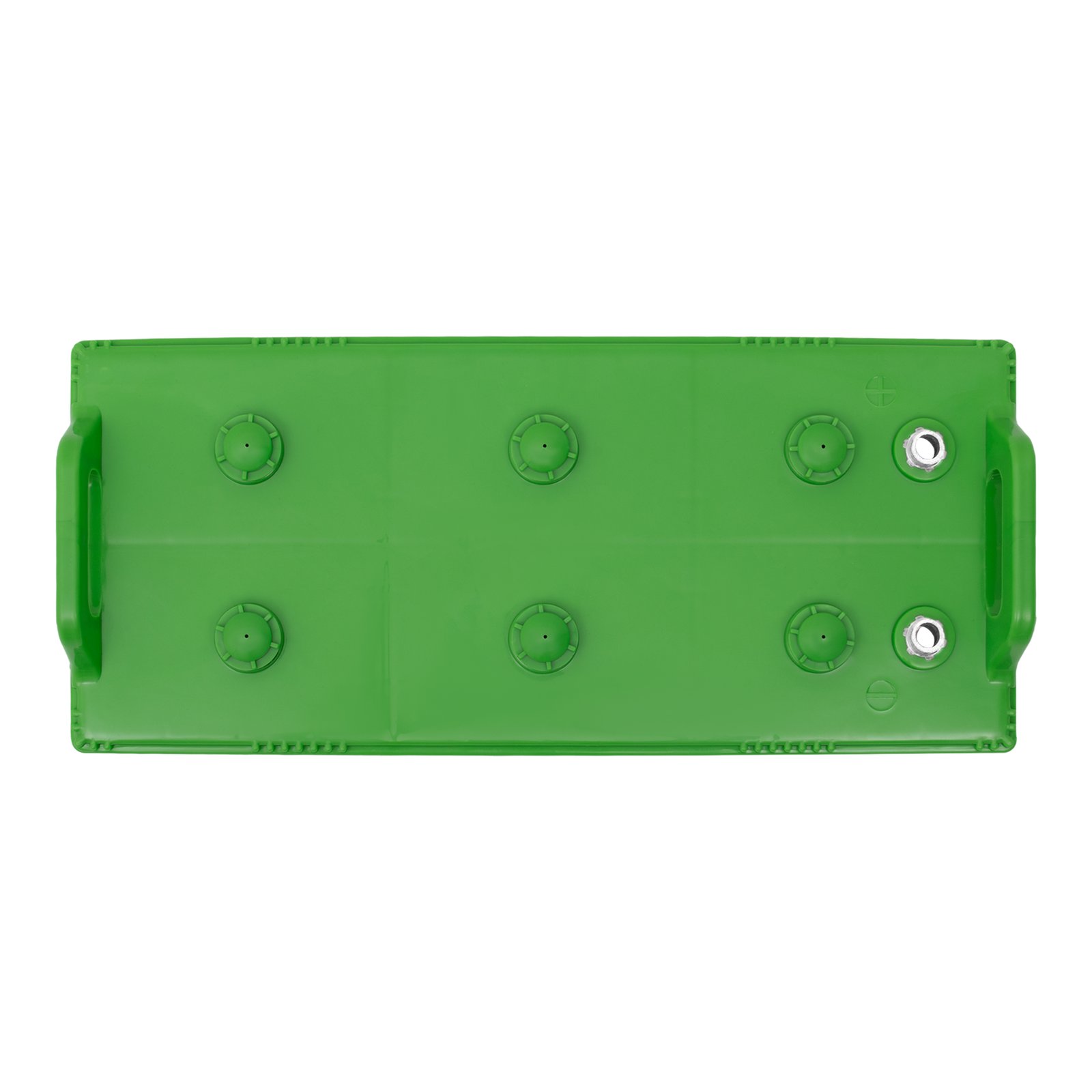

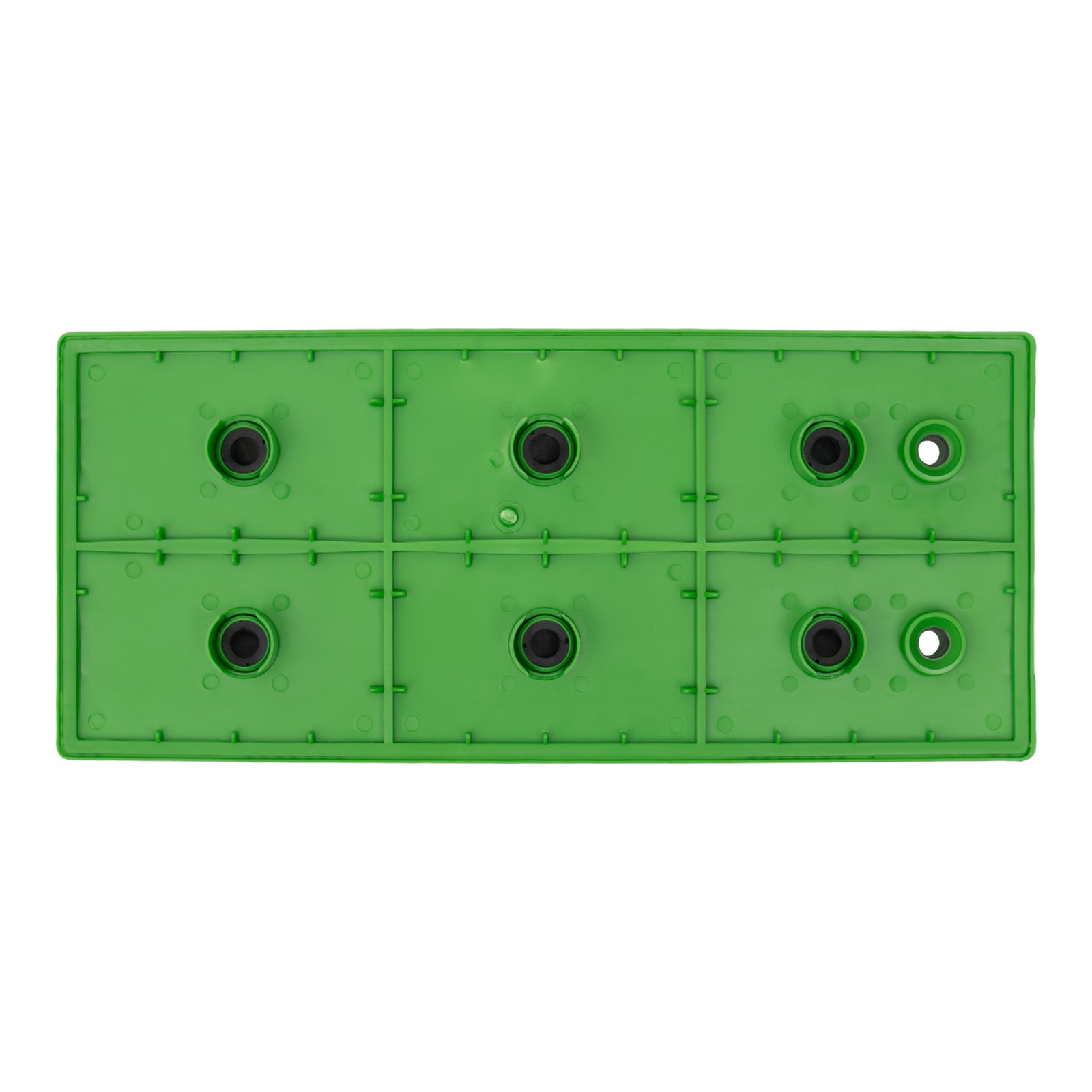

| S.NO. | DIMENSIONAL DESCRIPTION | UNIT | ACTUAL OBSERVATION |
|---|---|---|---|
| 1 | TOTAL LENGTH | MM | 503.20 |
| 2 | TOTAL WIDTH | MM | 221.58 |
| 3 | TOTAL HEIGHT | MM | 12.05 |
| 4 | SEALING RIB THICKNESS | MM | 8.00 |
| 5 | SEALING LENGTH OUTER | MM | 498.54 |
| 6 | SEALING LENGTH INNER | MM | 481.50 |
| 7 | SEALING WIDTH OUTER | MM | 218.00 |
| 8 | SEALING WIDTH INNER | MM | 200.00 |
| 9 | TERMINAL OUTER DIA(+VE) | MM | 18.06 |
| 10 | TERMINAL INNER DIA(+VE) | MM | 13.05 |
| 11 | TERMINAL OUTER DIA(-VE) | MM | 16.74 |
| 12 | TERMINAL INNER DIA(-VE) | MM | 12.86 |
| 13 | TERMINAL HEIGHT | MM | 10.58 |
| 14 | WEIGHT | GRAMS | 535.00 |
| S.NO. | DIMENSIONAL DESCRIPTION | UNIT | ACTUAL OBSERVATION |
|---|---|---|---|
| 1 | TOTAL LENGTH | MM | 503.20 |
| 2 | TOTAL WIDTH | MM | 221.58 |
| 3 | TOTAL HEIGHT | MM | 12.05 |
| 4 | SEALING RIB THICKNESS | MM | 8.00 |
| 5 | SEALING LENGTH OUTER | MM | 498.54 |
| 6 | SEALING LENGTH INNER | MM | 481.50 |
| 7 | SEALING WIDTH OUTER | MM | 218.00 |
| 8 | SEALING WIDTH INNER | MM | 200.00 |
| 9 | TERMINAL OUTER DIA(+VE) | MM | 18.06 |
| 10 | TERMINAL INNER DIA(+VE) | MM | 13.05 |
| 11 | TERMINAL OUTER DIA(-VE) | MM | 16.74 |
| 12 | TERMINAL INNER DIA(-VE) | MM | 12.86 |
| 13 | TERMINAL HEIGHT | MM | 10.58 |
| 14 | WEIGHT | GRAMS | 535.00 |

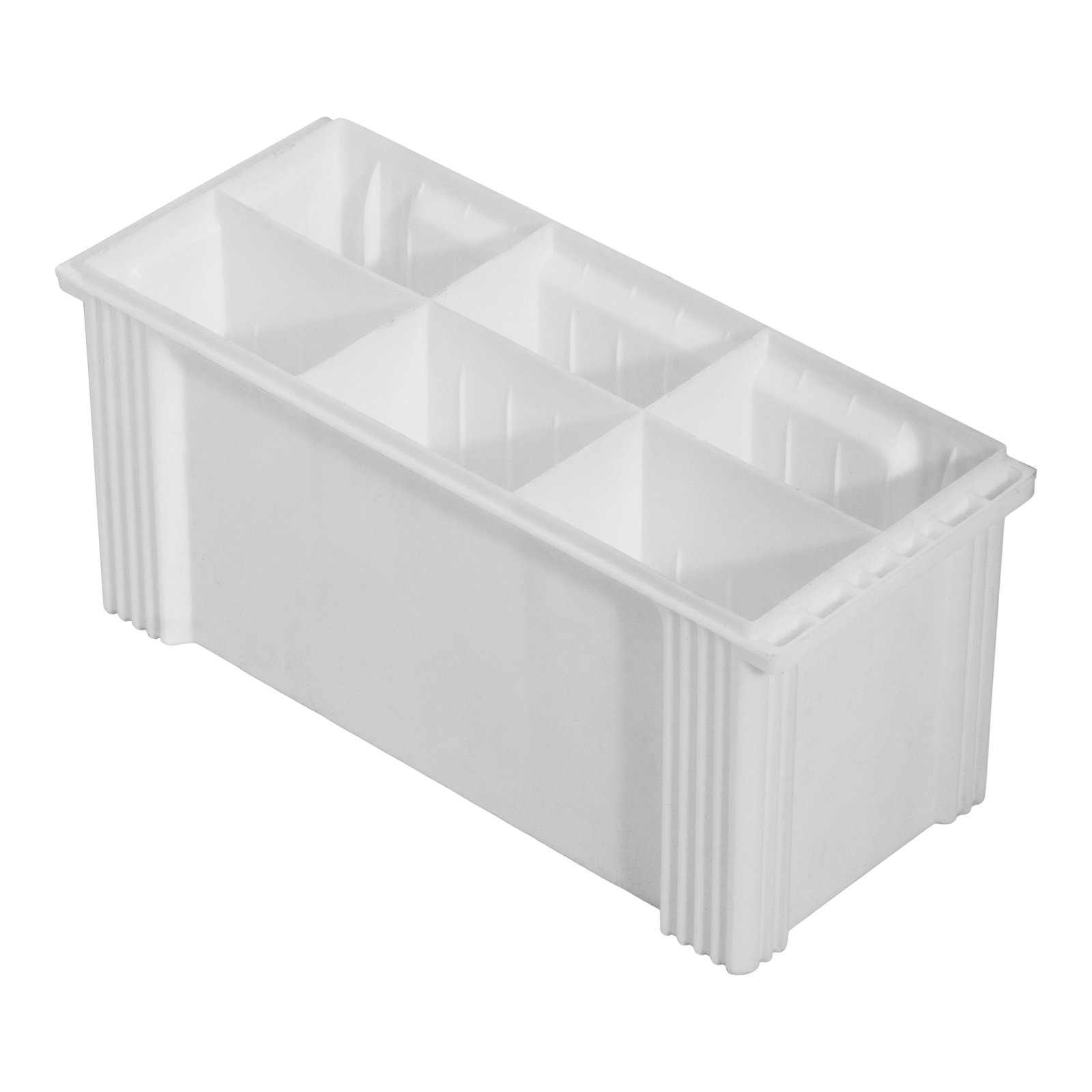

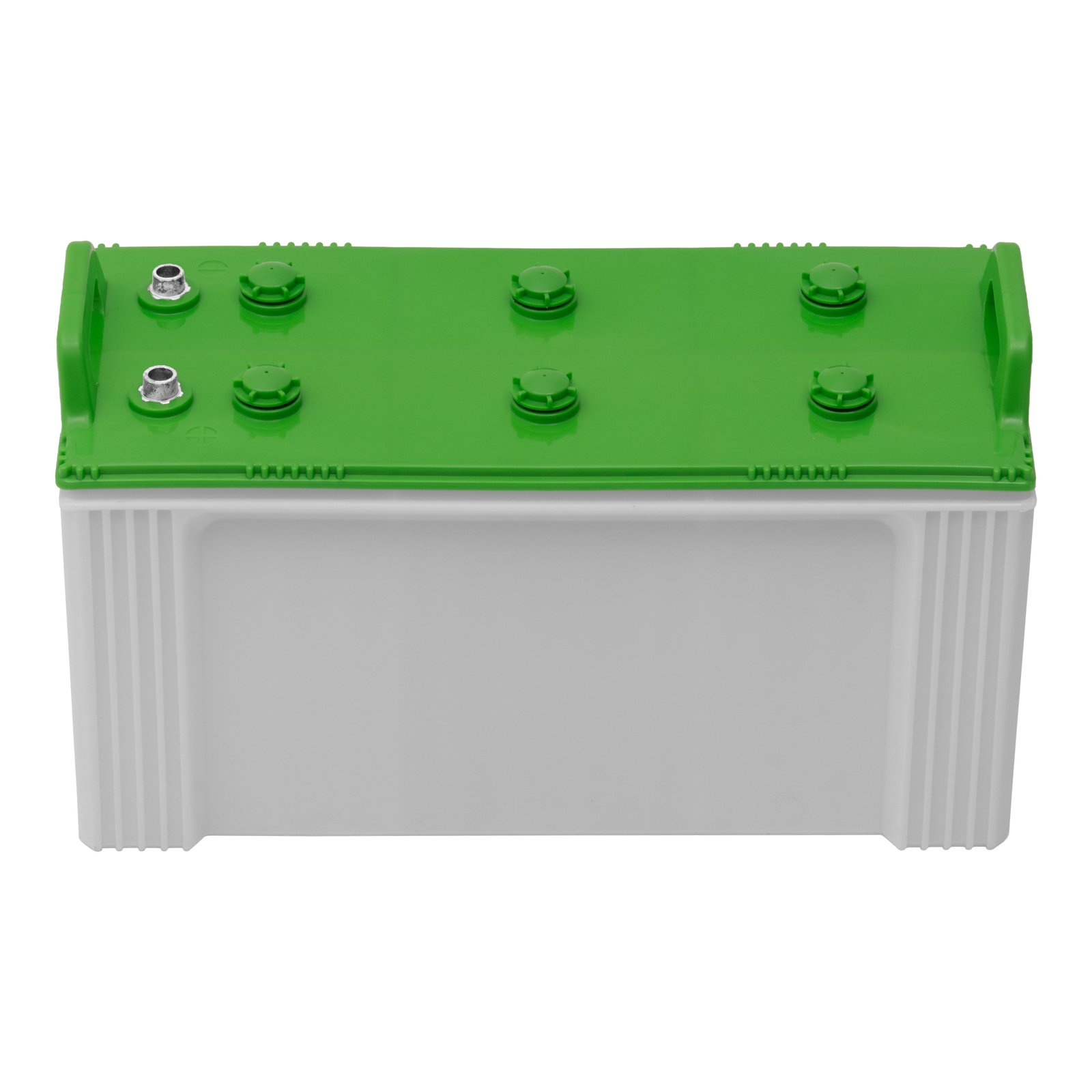

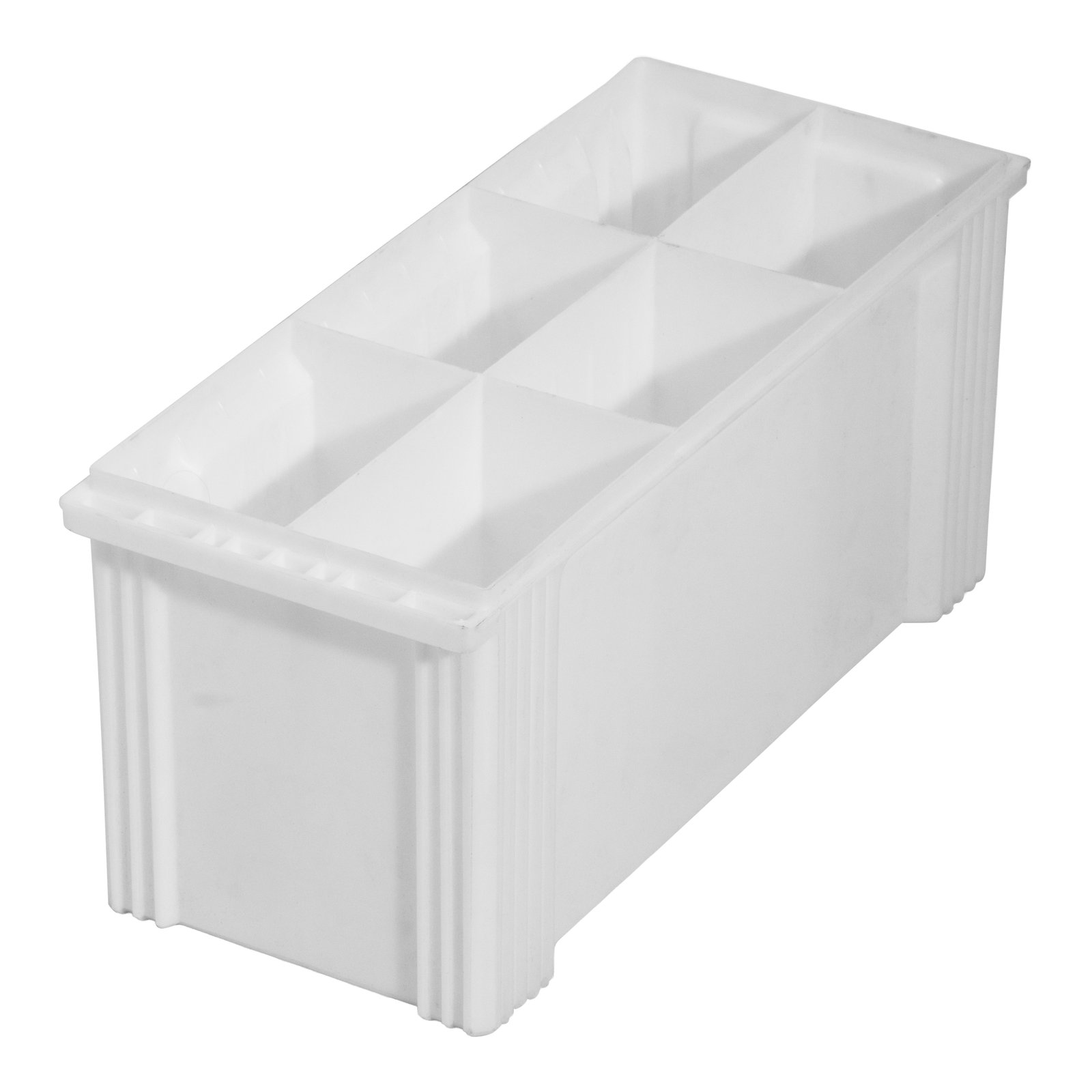

A trusted name in the battery container industry, recognized for innovative and highly functional designs. Each product is carefully crafted to exceed client expectations, with customization available on demand. Beyond batteries, we specialize in plastic injection molding, providing premium solutions for battery containers, PAIL containers, and more.
